2.8 Inch 240x320 ST7789 TFT Module Panel With LCD Controller Board

Hotdisplay Technology Co.Ltd

2.8 Inch 240x320 ST7789 TFT Module Panel With LCD Controller Board

Brand Name : HOTHMI

Model Number : LCM-TFT028T2

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Display Format : 240x320 Pixels

Outline L x W x H : 51.0x81.2x2.3mm

Active Area L x W : 43.2x57.6mm

Interface MCU SPI 4L : SPI

Controller Type : ST7789

Operating Temperature : -20°C ~ 70°C

Contact Now

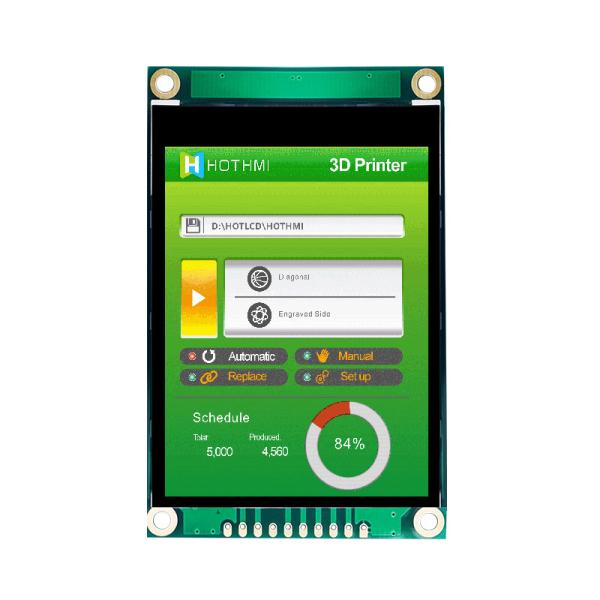

2.8 Inch 240x320 ST7789 TFT Module Panel With LCD Controller Board

LCM-TFT028T2 | 2.8" 6H o'clock LCD | 240x320 Pixels | LCD Controller Board | Interface SPI | IC ST7789 | -20°C ~ 70°C

Introducing the LCM-TFT028T2, a compact and high-quality 2.8-inch TFT module panel with a resolution of 240x320 pixels and an LCD controller board. Equipped with an ST7789 IC and SPI interface, this module delivers fast and reliable performance for a wide range of applications.

The 2.8-inch LCD screen is easy to read and provides sharp and clear images, making it ideal for use in handheld devices, portable instruments, and other applications where space is limited. The module is designed to operate in temperatures ranging from -20°C to 70°C, ensuring reliable performance in a variety of environments.

With its LCD controller board, the LCM-TFT028T2 is easy to integrate into your existing setup, and the SPI interface provides seamless connectivity. The module's compact size and low power consumption make it an excellent choice for battery-powered applications, while its high-quality display ensures that your content is displayed with exceptional clarity and brightness.

Overall, the LCM-TFT028T2 is a versatile and reliable TFT module panel that delivers outstanding performance in a compact form factor. Whether you're looking to upgrade your existing display or create a new handheld device, this module is an excellent choice that will meet your needs and exceed your expectations.

General information

Item

Specification

Unit

Outline Dimension

51.0x81.2x2.3

mm

Display area

43.2x57.6

mm

Number of Pixel

240(H) x 320(V)

pixels

Pixel pitch

-

mm

Pixel arrangement

RGB Vertical Stripe

Display mode

Normally Black

NTSC

70(Typ.)

%

Surface treatment

Antiglare, Hard-Coating (3H)

Weight

-

g

Back-light

Single LED (Side-Light type)

Power

Consumption

Logic System (White Pattern)

ST7789

W

B/L System

-

W

All Products

Reliability Testing

Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.

Glass Cleanliness

Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.

Bezel Appearance

Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.

PCB Appearance

PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.

Soldering

Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.

Consistency

Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.

Product Integrity

Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.

Glass Color

While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.

ESD Protection & Safety

All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.

Search keyword: tft 2.8, tft 2.8", 2.8 tft lcd, 2.8" tft lcd, 2.8 inch tft lcd, tft lcd 2.8, 2.8 tft display, 2.8" tft display,2.8nch tft display, tft display 2.8, tft display 2.8"

2.8 Inch 240x320 ST7789 TFT Module Panel With LCD Controller Board2.8 Inch 240x320 ST7789 TFT Module Panel With LCD Controller Board2.8 Inch 240x320 ST7789 TFT Module Panel With LCD Controller Board2.8 Inch 240x320 ST7789 TFT Module Panel With LCD Controller Board2.8 Inch 240x320 ST7789 TFT Module Panel With LCD Controller Board2.8 Inch 240x320 ST7789 TFT Module Panel With LCD Controller Board2.8 Inch 240x320 ST7789 TFT Module Panel With LCD Controller Board2.8 Inch 240x320 ST7789 TFT Module Panel With LCD Controller Board

TFT Custom Solutions

2.8 Inch 240x320 ST7789 TFT Module Panel With LCD Controller Board

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.


2.8 Inch 240x320 ST7789 TFT Module Panel With LCD Controller Board

Touchscreen Add-on

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.


2.8 Inch 240x320 ST7789 TFT Module Panel With LCD Controller Board

Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals.


2.8 Inch 240x320 ST7789 TFT Module Panel With LCD Controller Board

Cover Glass

Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
